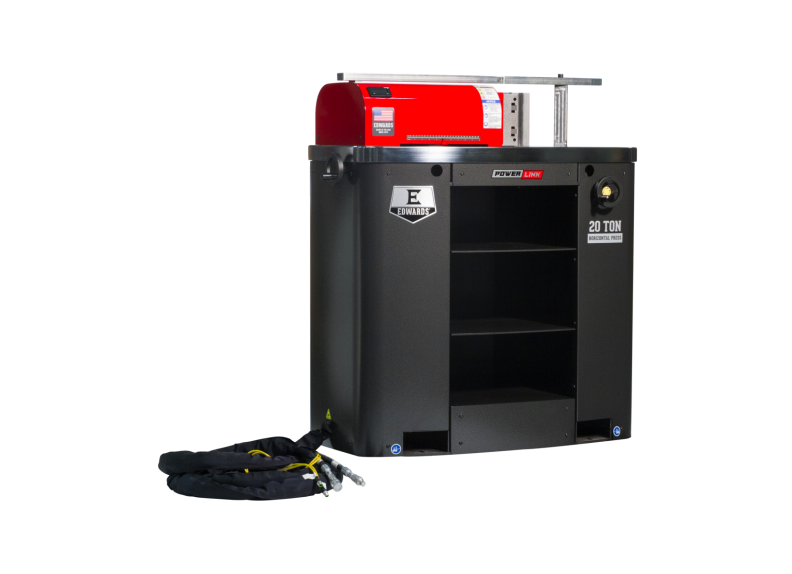

20 Ton Horizontal Press and Portable Power Unit 460V, 3Ph
Backorder
Only 2 left
Flyers - Edwards
Stock Number:
ED9-HAT6030
$17,699.00
Horizontal Press and Portable Power Unit 460V, 3Ph
The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. This Horizontal Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.
20' quick-connect hoses for simple "plug & play" operation
Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
Digital encoder provides enhanced accuracy for precise repeatability
Easy-to-use hand/jog controls with integrated E-Stop
Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
Robust construction with 2" machine heavy-duty table
Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more
Storage shelves perfect for holding additional tooling
| Stock Number | ED9-HAT6030 |
|---|---|
| Cylinder (In) | 2-1/4" Ram |
| Gross Weight (Lbs) | 1900 |
| Net Weight (Lbs.) | 1900 |
| Overall Dimensions (L x W x H) (In.) | 54 x 96 x 97 |
| Product Dimensions (In.) | 26 x 43 x 49 |
| Prop 65 | Cancer and Reproductive Harm |
| Rating (Tons) | 20 |
| Stroke (In.) | 10 |
| Table Dimensions (In.) | 24 x 42 |
| Weight (Lbs.) | 1900 |
| Work Height (In.) | 38 |
| Input Power | 230V 1 or 3 Phase |
