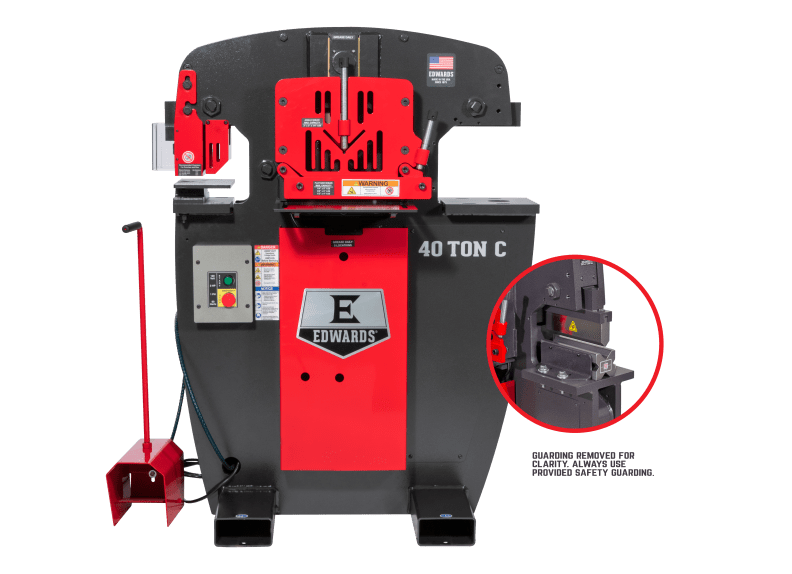

40 Ton C Ironworker, 115V, 1Ph, 8" Brake
Backorder
Flyers - Edwards
Stock Number:
ED9-40151022
$10,499.00
The 40 Ton C Ironworker is perfect for everything from a home garage or farm to a medium size workshop including an 8" Brake with 4-Way Die allowing 1/16’’, 1/8’’, 3/16’’, and ¼’’ material to be formed to a 90° angle. Running off 115V power, you can plug this Ironworker in almost anywhere and start fabricating. With 4 Workstations which include Punch, Flat Bar Shear, Angle Shear, and a dedicated factory-installed Coper Notcher and the ability to customize with 11 interchangeable Attachments and 16 optional Accessories, this machine can be modified to your specific project.
Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
ANSI B11.5-1988(02) Compliant Guarding
ETL Certified Controls
Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
Integrated Lock-out/Tag-out system with E-Stop for added safety
Operates off 115V power, convenient for all shop locations
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
| Stock Number | ED9-40151022 |
|---|---|
| Angle Shear Max Capacity 1/4" | 3 x 3 |
| Angle Shear Work Height (In.) | 40 |
| Flat Bar Shear Max Capacity 1/4" | 8 |
| Flat Bar Shear Max Capacity 3/8" | 6 |
| Flat Bar Shear Max Round (In) | 1/2 |
| Flat Bar Shear Max Square (In) | 1/2 |
| Flat Bar Shear Rating (Tons) | 40 |
| Flat Bar Shear Work Height (In.) | 34-3/4 |
| Hydraulic Pump (GPM) | 5 |
| Motor Amps | 17 |
| Motor (HP) | 2 |
| Open Station Throat Depth (In) | 10-1/2 |
| Open Station Work Height (In) | 34-1/2 |
| Opt. Coper Notcher Max Capacity (In.) | 2 x 3 x 5/16 |
| Prop 65 | None |
| Punch Max Capacity (In.) | 1 diam. In. 1/2 mild steel |
| Punch Stroke (In.) | 1-5/8 |
| Punch Throat Depth (In.) | 7 |
| Punch Work Height (In.) | 36-1/2 |
| Rating (Tons) | 40 |
| Reservoir (Gal.) | 7 |
| Valve Pressure (PSI) | 2750 |
| Weight (Lbs.) | 1720 |
| Input Power | 230V 1 or 3 Phase |
